Fibre Connector Confusion: SC/APC, LC/UPC, Green, Blue, Simplex, Duplex

Fibre patch leads look like they should be simple.

One end goes into the patch panel, the other end goes into the switch, and light travels through glass. Nice. Clean. Almost suspiciously elegant.

Then you actually need to order one.

Is it SC or LC? APC or UPC? Simplex or duplex? Single-mode or multimode? Green or blue? Straight-through or crossed? One core or two?

Suddenly, “just order a fibre lead” has turned into a tiny networking exam that nobody put in the calendar.

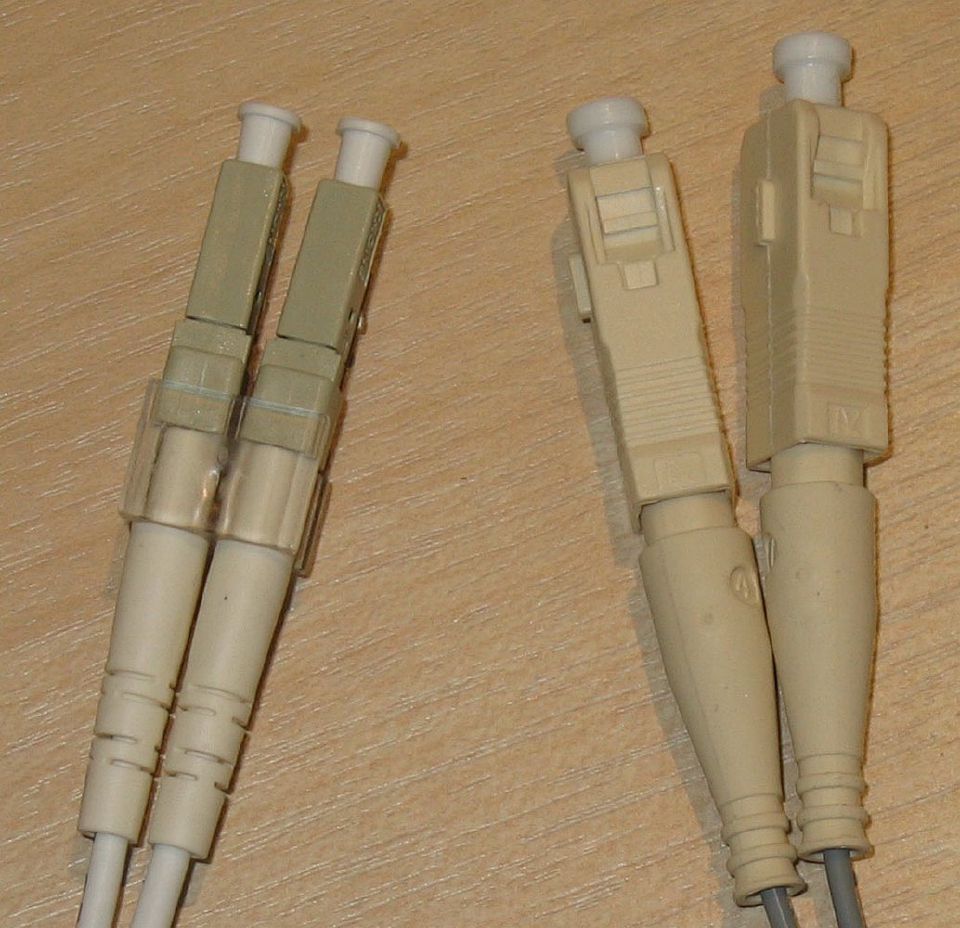

Actual LC connectors on the left and SC connectors on the right. This older photo is useful for connector shape, not polish or fibre type. Photo: Poil, CC BY-SA 3.0.

The good news is that most of the confusion comes from mixing together separate ideas. Once you split them apart, the whole thing gets much less dramatic.

The four big details are:

1. Connector shape, such as SC or LC
2. Connector polish, such as APC or UPC
3. Fibre type, such as OS2 single-mode or OM3/OM4 multimode
4. Fibre count, such as simplex or duplex

Get those right and you have already avoided most of the expensive nonsense.

SC vs LC Is Connector Shape

SC and LC describe the physical connector body. They tell you what shape plugs into the port.

They do not tell you the polish type. They do not tell you whether the fibre is single-mode or multimode. They do not tell you whether the lead is simplex or duplex.

They are just the plug shape.

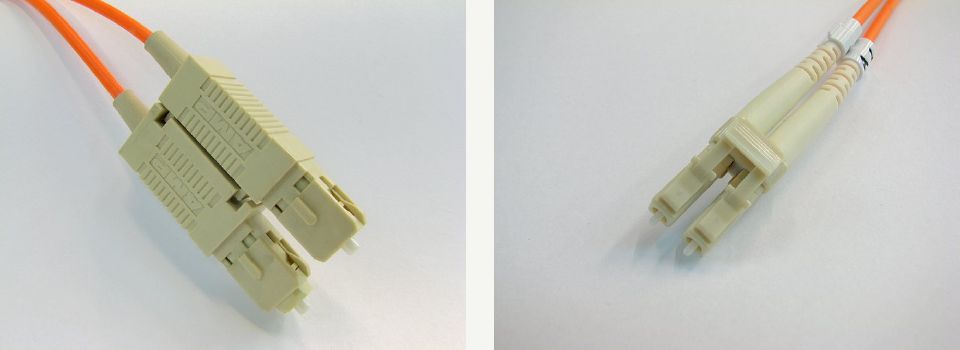

Actual SC connectors on the left and LC connectors on the right. Photos: Adamantios, CC BY-SA 3.0.

SC

SC connectors are the larger square-style connectors. You commonly see them on fibre patch panels, ONTs, FTTP/FTTH services, and carrier-style handoffs.

They are push-pull connectors, so they click in and pull out without the tiny latch you get on LC. Very civilised, at least by cabling standards.

In a lot of real installations, the patch panel side will have green SC connectors. That usually means SC/APC, but the important word there is “usually”. Check the spec before ordering.

LC

LC connectors are smaller. You commonly see them on SFP modules, switches, firewalls, routers, and media converters.

If SC is the bigger connector you expect on a patch panel, LC is the compact connector that lets switches fit lots of fibre ports into a small space.

The trap is saying “I need an SC to LC lead” and stopping there.

That is not enough information. You still need the polish, fibre type, fibre count, and usually the polarity.

APC vs UPC Is Connector Polish

APC and UPC describe the polish on the glass end-face inside the connector.

That tiny end-face is where the optical signal passes between connectors, adapters, optics, and equipment. The physical connector can be SC or LC, but the polish can still be APC or UPC.

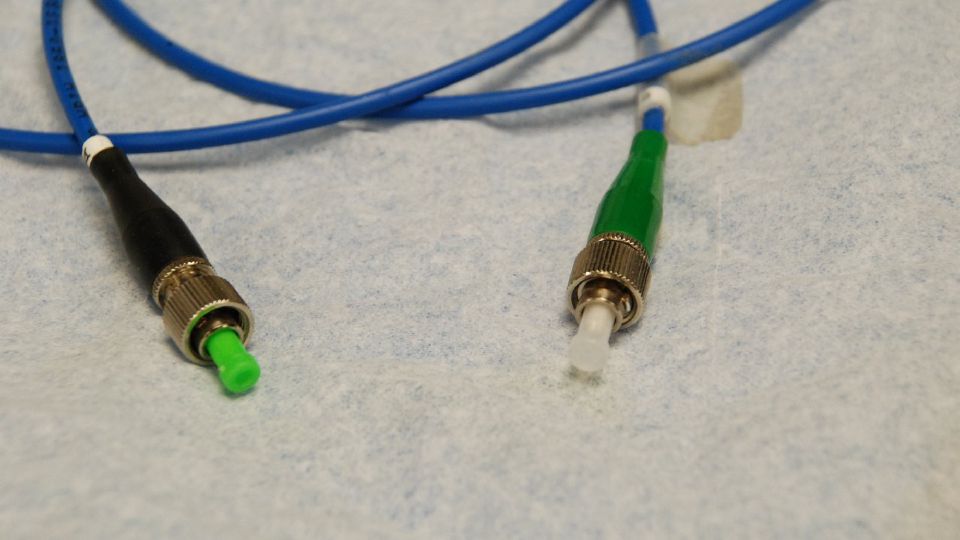

A real APC connector example. This photo shows FC/APC rather than SC/APC or LC/APC, but the green APC identifier is the same clue you will see across connector families. Photo: Eric Magnan, CC BY-SA 3.0.

The exact connector shape can change, but the polish concept does not. UPC has no angled polish. APC uses an angled polish to reduce reflected light going back toward the source.

UPC

UPC means Ultra Physical Contact.

UPC connectors are normally blue when used with single-mode fibre. They are common on active network gear such as SFP modules, switches, firewalls, routers, and media converters.

Most standard Ethernet fibre links that use LC SFPs will use LC/UPC connectors.

UPC connector faces are not completely flat. They have a slight curve to improve core alignment, but they are not angle-polished like APC.

APC

APC means Angled Physical Contact.

APC connectors use an angled end-face, commonly described as an 8-degree polish. That angle helps reduce reflected light going back toward the source, which matters in systems that are sensitive to return loss.

You will often see APC in FTTP/FTTH, GPON, passive optical LAN, RF video, WDM, and carrier environments.

APC connectors are usually green.

The important part: APC and UPC should not be directly mated.

Even if the connector shape fits, the end-face polish is different. A green SC/APC connector and a blue SC/UPC connector may both be SC, but they are not the same thing. Mating APC and UPC face to face can cause poor optical performance and may damage the connector surfaces.

A hybrid patch lead is fine when each end plugs into the correct matching port. For example, SC/APC into a green SC/APC patch panel and LC/UPC into a blue LC/UPC SFP. The mistake is using an adapter or coupler to force APC and UPC connector faces directly together.

That is the fibre version of “it fits if I push harder”, which is how a five-minute job becomes a procurement incident.

Green vs Blue Is a Clue, Not Proof

Connector colour is useful. It is not a complete specification.

For single-mode fibre, the usual rule of thumb is:

The Fiber Optic Association colour-code guidance lists blue connector bodies for single-mode and green connector bodies for single-mode APC. It also lists aqua for laser-optimized OM3/OM4 multimode.

That is helpful when you are standing in front of a rack trying to work out what is going on.

But colour alone is not enough. There are old installs, custom leads, wrong stock, faded boots, vendor variations, and unlabeled cables that look like they have lived a full life.

Use colour as a clue. Let the written specification, cable markings, drawings, labels, and equipment documentation make the final call.

Simplex vs Duplex Is Fibre Count

Simplex and duplex are about how many fibre strands are in the patch lead.

They are not connector types.

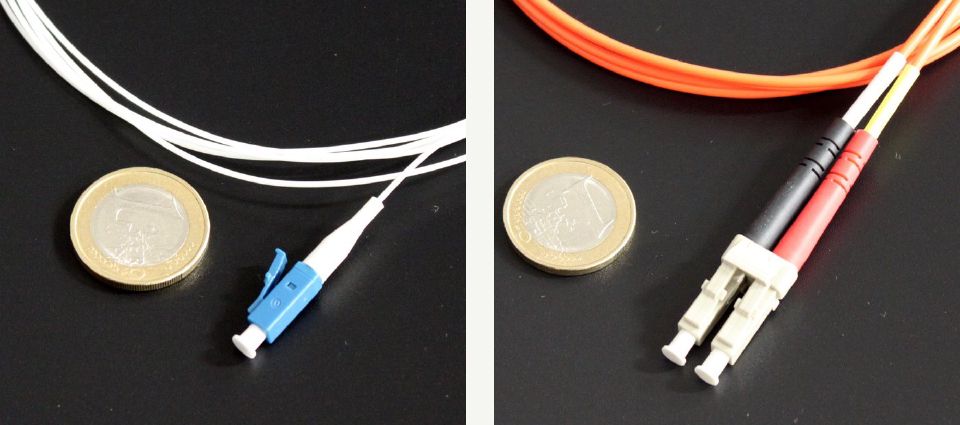

Actual LC simplex on the left and LC duplex on the right. Photos: Christophe.Finot, CC BY-SA 3.0.

Simplex

Simplex means one fibre strand.

You may see simplex leads in GPON/FTTP-style services, BiDi optic links, and designs where transmit and receive share one fibre by using different wavelengths.

If the service uses one core, do not order a duplex lead just because the connector looks familiar.

Duplex

Duplex means two fibre strands.

This is common for standard Ethernet fibre links where one fibre transmits and the other receives. Most normal 1G, 10G, and similar LC SFP links use duplex LC at the active equipment end.

This is why “how many cores?” matters.

The connector shape tells you what fits into the port. It does not automatically tell you whether the service uses one fibre or two.

Single-Mode vs Multimode Is Fibre Type

This is another separate layer.

Single-mode and multimode describe the fibre itself and the optics designed to use it.

OS2 single-mode

OS2 is single-mode fibre. It is commonly used for longer distances, carrier links, campus or building backbones, FTTP/FTTH services, GPON, and many structured cabling designs.

Single-mode patch leads are commonly yellow-jacketed. On single-mode connectors, blue usually points to UPC and green usually points to APC.

Typical examples:

OM3 and OM4 multimode

OM3 and OM4 are multimode fibre types. They are often used inside buildings and data centres for shorter links.

OM3 and OM4 patch leads are commonly aqua. Older multimode is often orange, with beige connector bodies in older connector styles.

Typical examples:

The practical rule is simple: match the patch lead to the optic and the installed cabling.

Single-mode optics generally need single-mode fibre. Multimode optics generally need multimode fibre. Mixing them because “the connector fits” is a reliable way to spend the afternoon looking confused at link lights.

Real-World Examples

This is where the theory turns into purchase orders, cabinet labels, and someone saying “I thought blue and green were just colours.”

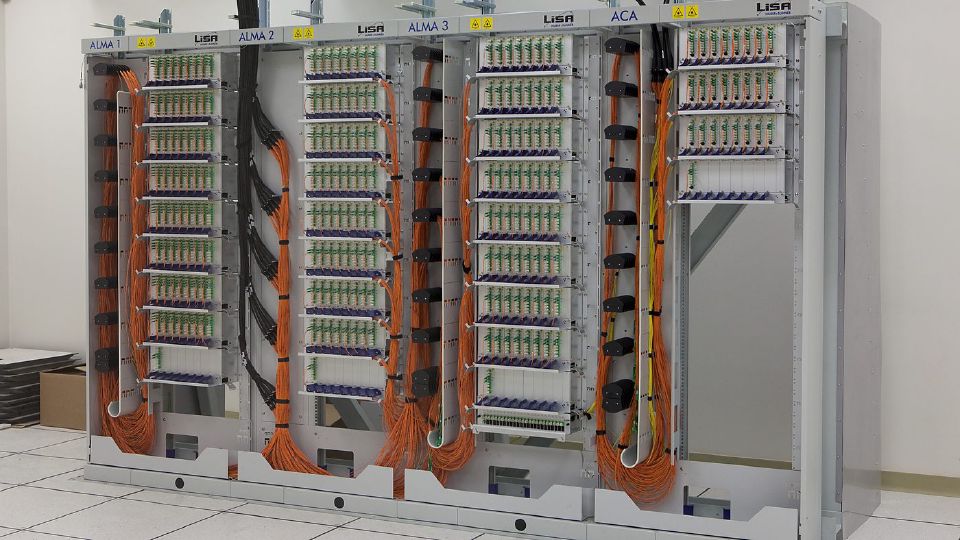

Patch panels turn vague cable descriptions into actual port and connector decisions. Photo: ALMA (ESO/NAOJ/NRAO), CC BY 4.0.

Patch panel to switch

You have a fibre patch panel with green SC/APC adapters.

Your switch has a standard LC SFP module.

You probably need:

2m OS2 single-mode fibre patch lead, SC/APC to LC/UPC.

If it is a standard duplex Ethernet link, order the duplex version.

If it is a single-core BiDi or GPON-style service, order the simplex version.

The phrase “SC to LC” is not enough. The useful line item is something like:

Supply 2m OS2 single-mode fibre patch lead, SC/APC to LC/UPC, simplex, LSZH jacket.

Or, for a normal two-core Ethernet link:

Supply 2m OS2 single-mode fibre patch lead, SC/APC duplex to LC/UPC duplex, LSZH jacket.

ONT or FTTP handoff

Many ONT and FTTP-style services use green SC/APC connectors.

That does not mean your switch uses SC/APC.

The carrier handoff may be SC/APC, while your active network equipment still expects LC/UPC through the SFP. Check the ONT, NTD, patch panel, optics, and handoff documentation before ordering.

Do not just order “a green fibre lead” and hope for the best.

Hope is not a design standard.

Media converter link

A media converter with an SFP slot usually needs whatever connector the SFP requires.

A typical LC SFP expects LC/UPC. If the other end is a green SC/APC patch panel, the lead may need to be SC/APC to LC/UPC OS2.

But if the media converter has fixed SC ports, the required lead could be different.

The actual port matters.

How To Specify Fibre Patch Leads

When ordering or documenting fibre patch leads, include the details that remove ambiguity:

1. Fibre type: OS2 single-mode, OM3, OM4, and so on
2. Connector A: SC/APC, SC/UPC, LC/UPC, LC/APC, and so on
3. Connector B: same level of detail
4. Fibre count: simplex or duplex
5. Length: 1m, 2m, 3m, or whatever the cabinet actually needs
6. Jacket rating: LSZH, OFNR, or the required site standard
7. Polarity: straight-through or crossed, where relevant
8. Boot type: standard, short boot, angled boot, or low-profile if space is tight
9. Optic/service type: standard duplex optic, BiDi optic, GPON, carrier handoff, or other service detail

A good line item:

Supply 2m OS2 single-mode fibre patch lead, SC/APC to LC/UPC, simplex, LSZH jacket.

A vague line item:

Supply fibre cable.

That second one is how chaos enters the building wearing a hi-vis vest.

Quick Troubleshooting Checklist

Before blaming the switch, firewall, SFP, vendor, cabler, weather, Mercury retrograde, or the poor apprentice, check the boring stuff first.

The Simple Mental Model

If the terminology starts to blur together, come back to this:

Once you separate those layers, fibre ordering becomes much easier.

Still annoying sometimes, but easier.

Conclusion

Fibre connector confusion usually happens because people use one word to describe the whole cable.

They say:

I need an SC lead.

But what they actually need might be:

2m OS2 single-mode SC/APC to LC/UPC simplex patch lead with LSZH jacket.

That missing detail matters.

The wrong connector, polish type, fibre type, or fibre count can leave you with a link that does not work, performs badly, or damages connector faces. So check the panel, check the optics, check the service handoff, and write the full specification.

A fibre patch lead is not just a cable.

It is a tiny glass agreement between two pieces of equipment.

And like most agreements, the details matter.
